PtPrintSel

A widget for selecting printing properties

Class hierarchy:

PtWidget --> PtBasic --> PtContainer --> PtPrintSel

For more information, see the diagram of the widget hierarchy.

PhAB icon:

Public header:

<photon/PtPrintSel.h>

Description:

The PtPrintSel widget lets a user select a printer, change its properties, and optionally select a range of pages and the number of copies to print.

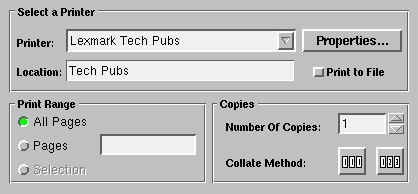

A PtPrintSel widget.

New resources:

Pt_ARG_PRINT_CONTEXT

The current Print Context settings. This resource isn't available through PhAB, but you'll need a Print Context in order to do any printing. Use PpPrintCreatePC() to create a Print Context, and PpPrintSetPC() to change its settings.

When you use PtGetResources() to get this resource, you must provide a PpPrintContext_t structure, which is filled in directly with the values of the context. Unlike most calls to PtGetResources(), you aren't given a pointer into the widget's internal memory.

Pt_ARG_PRINT_FLAGS

Flags to modify the appearance of the widget:

• Pt_PRINTSEL_ALL_PANES - if this flag is set, all the panes of the print selector are displayed; if cleared, the Print Range and Copies panes aren't displayed.
• Pt_PRINTSEL_PROP_APP - enable the Properties button.
• Pt_PRINTSEL_NO_PAGE_RANGE - if this flag is set, you can't specify a range of pages to print.
• Pt_PRINTSEL_NO_SELECT_RANGE - disable the Selection button in the Page Range pane.
• Pt_PRINTSEL_NO_COPIES - disable the Number of Copies field.
• Pt_PRINTSEL_NO_COLLATE - disable the Collate Method buttons.
• Pt_PRINTSEL_NO_PREVIEW - disable the Preview button.

Pt_CB_PRINT_PROPS

A list of callbacks that are invoked when:

• the Properties button is pressed (reason_subtype is Pt_PRINTSEL_PROPERTIES)
• the Add Printer button (which appears instead of Properties if no printer is installed) is pressed (reason_subtype is Pt_PRINTSEL_ADDNEW)
• the Properties or Add Printer process ends (reason_subtype is Pt_PRINTSEL_RETURN)

Each callback is passed a PtCallbackInfo_t structure that contains at least the following members:

reason

Pt_CB_PRINT_PROPS

reason_subtype

Defines the Properties action:

Pt_PRINTSEL_PROPERTIES

The Properties button was selected. You might use this callback to block access to the print selector's window while the Properties dialog is open (the PtPrintSel widget blocks itself automatically).

Pt_PRINTSEL_ADDNEW

No printer has been installed. By default, this callback invokes the Printer Installation program, prsetup. See the Printing chapter in the User's Guide.

Pt_PRINTSEL_RETURN

The user has closed the Properties dialog. You might use this callback to unblock access to the print selector's window (the PtPrintSel widget unblocks itself automatically).

cbdata

A pointer to a string that's the printer's name.

These callbacks should return Pt_CONTINUE.

Inherited resources:

If the widget modifies an inherited resource, the "Default override" column indicates the new value. This modification affects any subclasses of the widget.

Pt_ARG_DIM

The dimension of the PtPrintSel widget is fixed at 418 wide * 186 high (when the Pt_PRINTSEL_ALL_PANES bit of the Pt_ARG_PRINT_FLAGS resource is set), or 418 wide * 95 high (when the Pt_PRINTSEL_ALL_PANES bit is clear).

Convenience functions:

The PtPrintSel class defines the following convenience function:

PtPrintSelection()

Display a modal dialog for initiating printing. See the Photon Library Reference.
